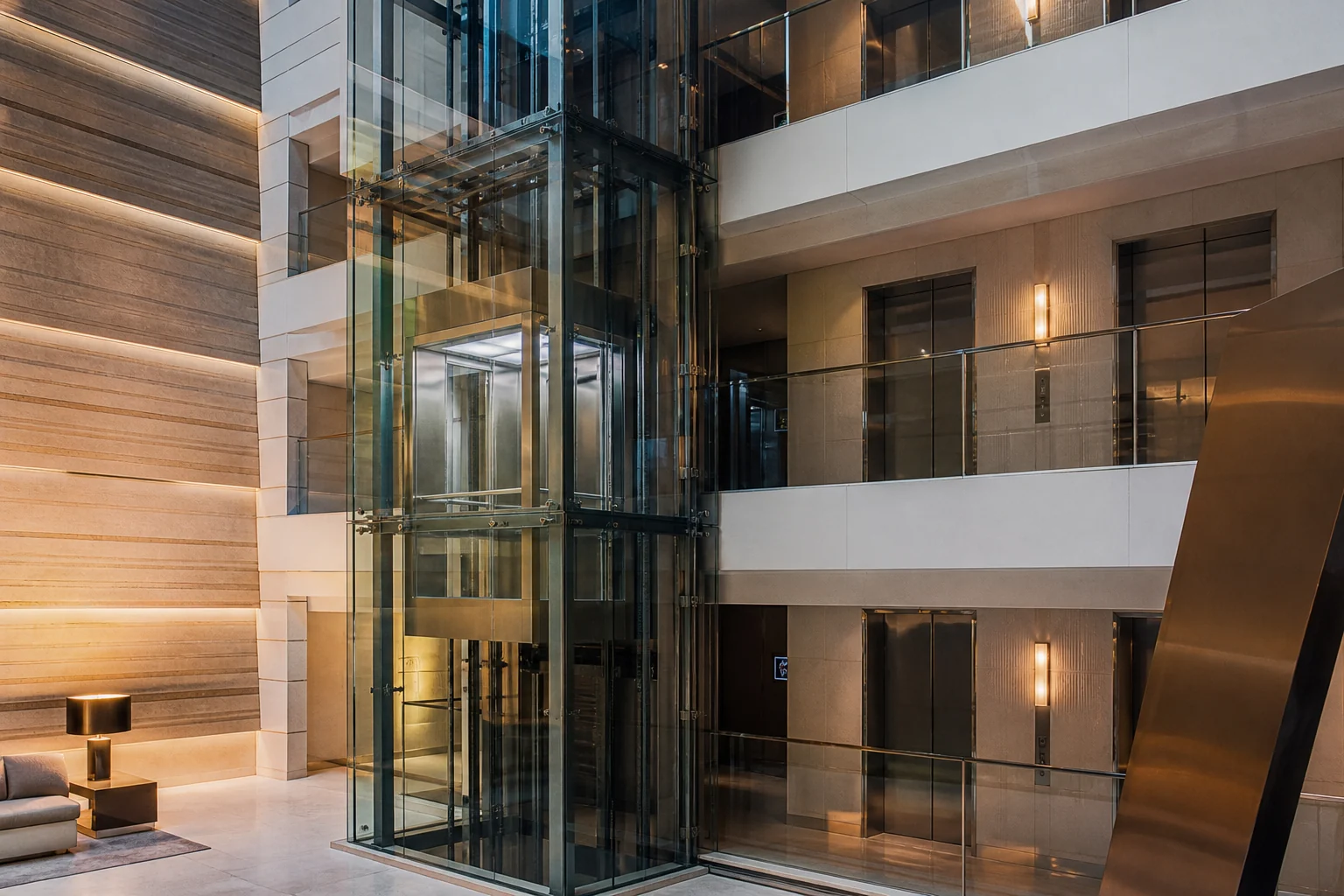

Car shapes
Car shape is fixed early because it sets the counterweight position and the whole shaft structure.

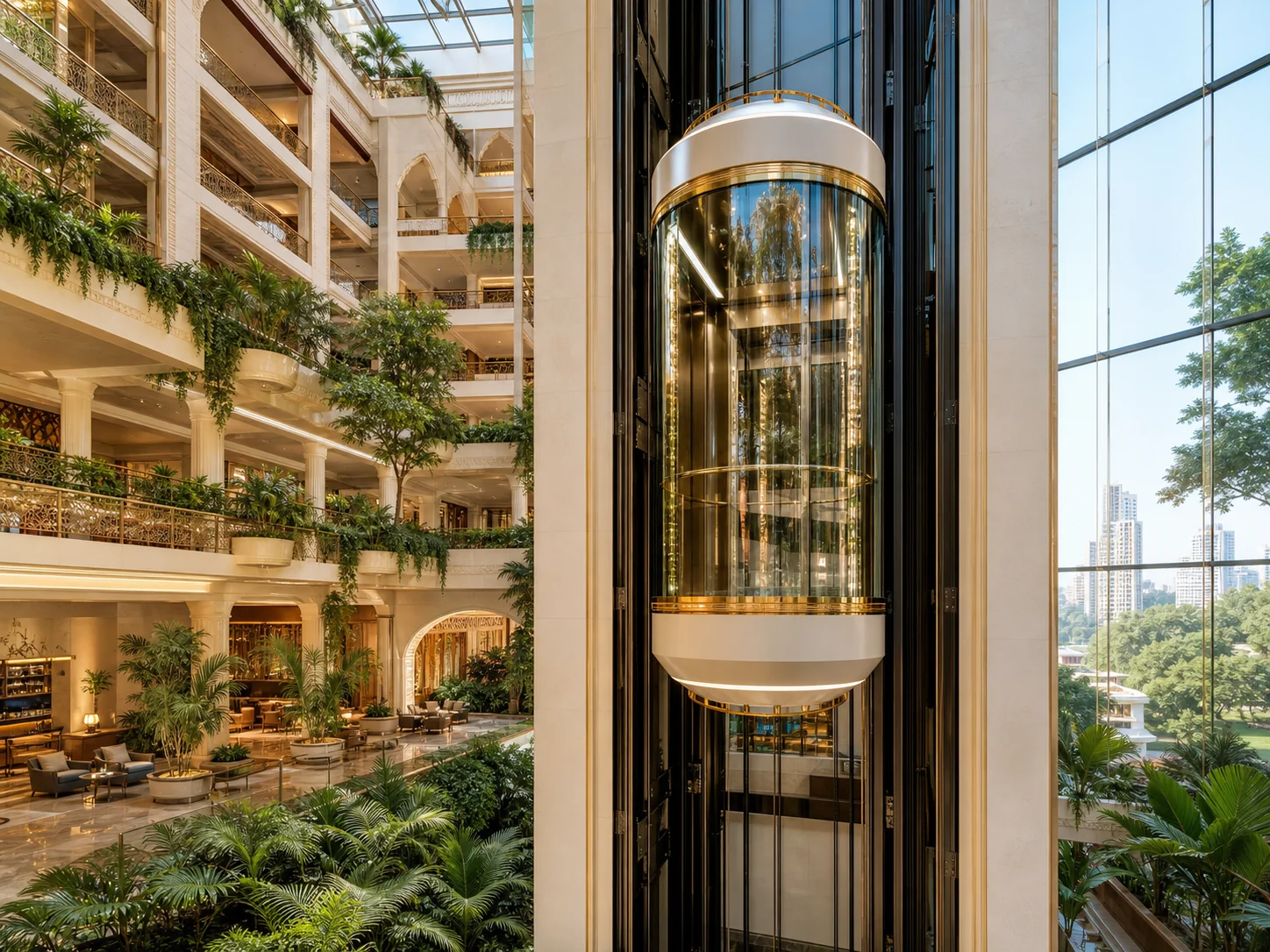

Panoramic lift specialists
A panoramic lift is a structural and glazing project as much as an equipment one — hiding the counterweight run, detailing solar control, planning who cleans both faces of the glass for the life of the building. We have carried that detail through hotel atriums, malls and corporate lobbies across the NCR, working with architects at drawing stage rather than being handed a finished shaft. For a lift meant to be a feature, that upfront coordination is what separates a capsule that photographs well from one that actually works for twenty years.
Design notes
These are the points where a panoramic installation diverges from an ordinary lift, and all of them are cheaper to resolve at drawing stage than on site.
How much of the car is glazed, and which way it faces, sets the counterweight position and therefore the whole shaft layout.
The counterweight and its rails have to sit behind a solid segment of the shaft, out of the sightline from the atrium floor.
Someone has to clean both faces of the glass for the life of the building. Cradle, gantry or scaffold access is a building decision.
A glass car in a south-facing atrium heats up. Solar-control glazing and car ventilation are specified together.
Car lighting has to work against a bright atrium by day and a dark one at night. Dimmable fittings avoid the car looking like a lightbox after hours.
Panoramic shafts are usually steel. The frame is designed with the lift loads in it, not adapted to them afterwards.
Where they go
Alongside
Equipment is half the decision. These are the parts of the lifecycle we cover for it.
Common questions
The machine costs about the same as a standard traction lift. Capsule elevator price moves with the car, the glazing and the shaft structure, which together typically add a meaningful premium over a conventional car. Cleaning access is the cost people forget to budget for.
Yes, with weather-rated equipment, drainage in the pit and IP-rated fixtures. Outdoor installations also need corrosion protection specified for the location.
Laminated safety glass for both car and shaft. If the glass ever breaks, laminated glass holds together instead of falling into the atrium.
It runs behind a solid segment of the shaft, typically at the rear or on the side facing away from the public. This is fixed early, because it determines the viewing arc.
The machinery does not. The finishes do — glass cleaning and gasket condition are added to the AMC schedule.
Send the atrium section and the floors served. We will come back with car shape options, the counterweight position and what the structure has to carry.
